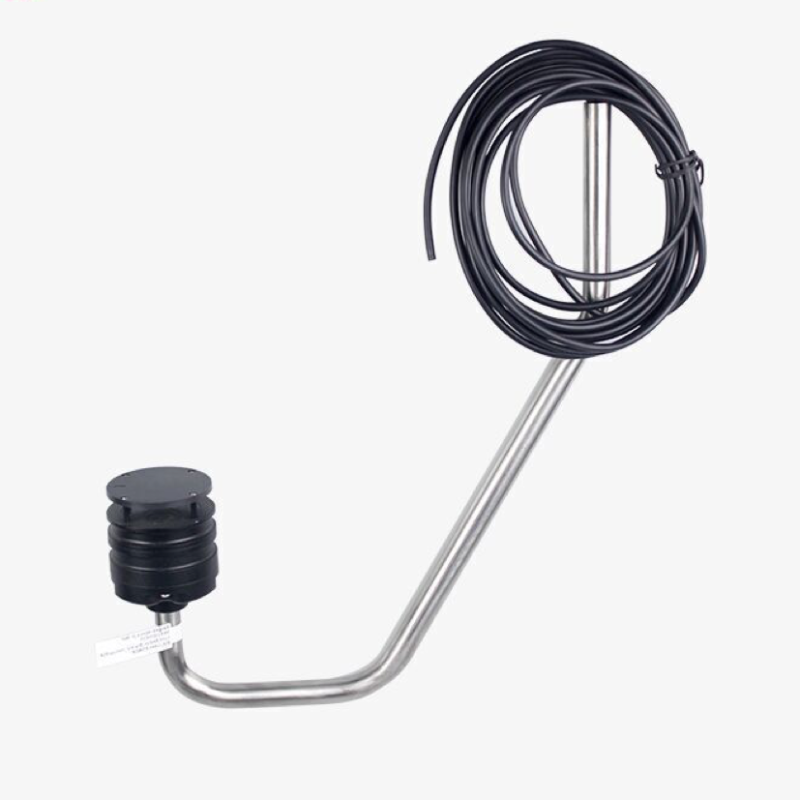

Ultrasonic Wind Speed and Direction Sensor
PRODUCT DESCRIPTION
RK120-10 Ultrasonic Wind Speed and Direction Sensor measure the wind speed & direction by using time difference of ultrasonic wave in the air. The products adopts low power chip and the minmum power consumption is 0.01W. It is especially suitable for high power requirements application like the solar energy or battery power supply. The shell can be made of ABS, aluminum alloy or stainless steel. The surface is treated with special oxidation resistance, corrosion resistance and can be used in different environments.
SPECIFICATION
Item | Technical Specification |
Power Supply | 12-24VDC |
Power consumption | 0.01W(min) |
Output Signal | RS232/RS485(Modbus or NMEA-183), SDI-12 |
Operating Temperature | -20℃-+60℃ |
Ingress Protection | IP65 |
Dimension | Φ50×43-58)mm(Dimensions will vary depending on the parameters) |
Weight(unpacked) | 0.20kg (ABS)/ 0.28kg (aluminum alloy)/0.58kg (stainless steel) |
Main material | ABS/ aluminum alloy/ stainless steel |
Item | Technical Specification | ||
Range | Resolution | Accuracy | |
Wind speed | 0-60m/s | 0.1m/s | ±3% |
Wind direction | 0-359° | 1° | ±3° |
Starting Threshold | 0.1m/s | ||
Extreme Wind Speed | 80m/s |
