SONIC15 -Instrument for Tests Ultrasonic Pulse Velocity and Sonic Tests with Instrumented Hammer
SONIC15 with accessories
lncluded accessories:
- n.2 Contact probes 52 KHz freq.
- n.1 Trigger hammer
- n.1 Cable for instrumented hammer 3 mt.
- n.1 Report Software
- n.1 Reference sample in PVC
- n.1 Autmatic charger
- n.1 8 Gb microSD Memory
- n.1 Gel for ultrasonic
- n.1 Shoul
Description
Methodologies
- Ultrasonic Pulse Velocity
- Sonic Test
- Sonreb
Description
SONIC15 is a device for non Destructive Tests with ultrasonic pulse velocity and sonic tests on masonry through instrumented hammer. In spite of compact dimension of the unit, there is a wide monitor of 7’’ with integrated touch screen which allows to use it on site in immediate and effective way. Waves acquisition and visualization parameters could be easily changed in simple and immediate way through touch screen, in order to allow on site first checking of recorded data. SONIC15 can be used for surveys both on cement and concrete elements both on masonry structures. According to different kind of performed tests, just connect to instrument necessary accessories as different kind of ultrasonic probes or impulsive trigger hammer for impact tests. SONIC15 instrument together with the new Controls digital sclerometer can be used for Sonreb tests.
Technical Specifications
General
- Power supply: lithium battery 13Ah
- Power consumption: 1,1A @ 5V
- Operating temperature: 0 / +60 °C
- Dimensions: 220 x 180 x 60mm
- Display: LCD capacitive 7" TFT touch screen
- CPU: CortexA8 @ 1 GHz, RAM 500 MB, Flash 1GB memory
- Graphic functions: Automatic zoom on cursor or on a temporal set up window, time cursor reading
- Regulations: ASTM-C597- 09, UNI EN 12504-4
- Weight: 800 g
Acquisition
- Resolution: 12 bit
- Signal range: ±2.5 V
- Samples per event: 2048
- Amplification factors: x1, x2, x4, x5, x8, x10, x16, x32
- Bandwidth: 200 Khz
- Ultrasonic filter: central frequency 50 kHz
- Differential error: <0.03%
- Trigger : trigger button / hammer / automatic
Probes
- Typology: Contact
- Frequency: 23 / 55 / 70 kHz
- Trigger: Integrated trigger button on TX probe
Related Products
SCU23DU15
Ultrasonic transmitting probe 23 kHz frequency ODU connector
SCU23DU15T
Ultrasonic receiving probe 23 kHz frequency ODU connector
SCU70DU15T
Ultrasonic receiving probe 70 kHz frequency ODU connector
MS243
Trigger hammer for sonic test
SCU70DU15
Ultrasonic transmitting probe 70 kHz ODU connector
SCU55DU15
Ultrasonic transmitting probe 55 kHz frequency ODU connector
SCU55DU15T
Ultrasonic receiving probe 55 kHz frequency ODU connector
USLABCT
Ultrasonic pulse velocity report software

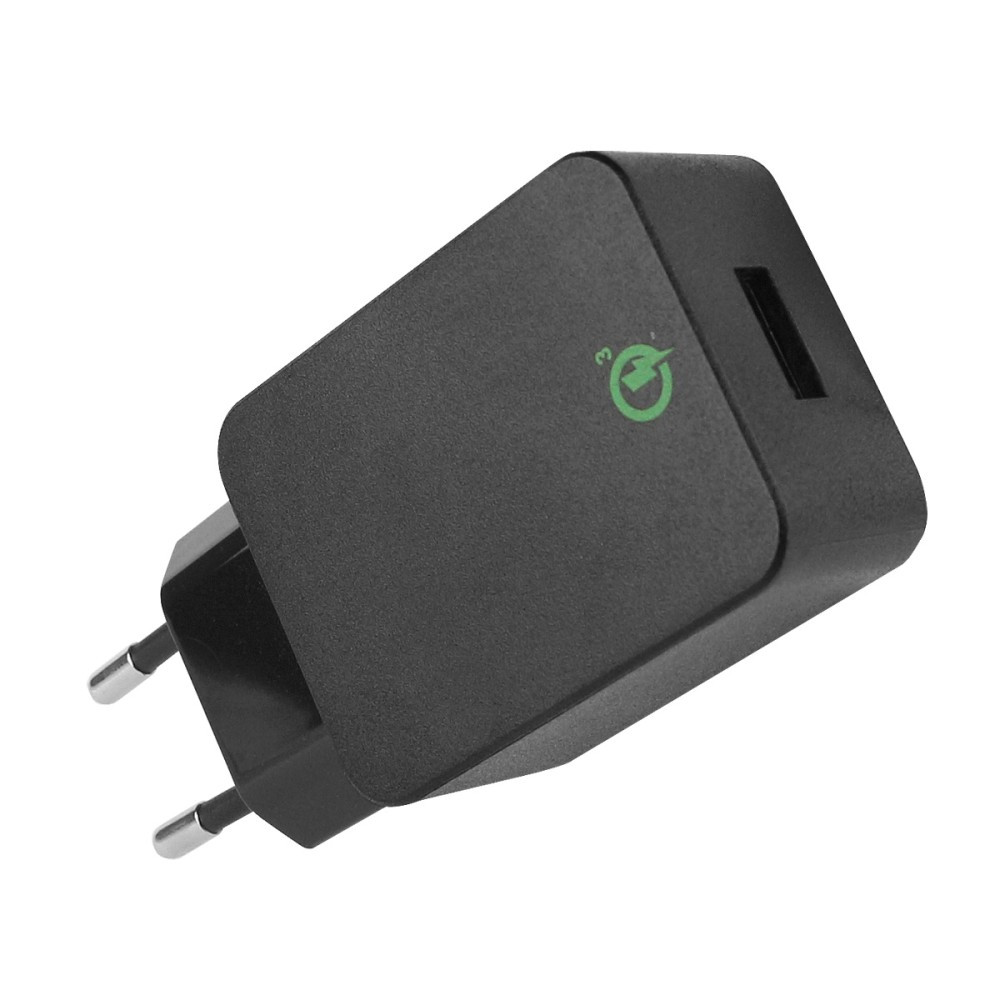

AL12500
USB 3.0 quick charger
CUMAUMB1M
MICRO USB CONNECTION CABLE
SDMHC8
MICRO SD MEMORY 8 GB
Product Details
SONIC15
